BuckOhm™ TrueFit™ H-Style with Dielectric D-Ring - U68M9EQ3
Buckingham’s new BuckOhm™ line is a line of products designed to have all dielectric hardware. The new BuckOhm™ TrueFit™ Blackout H-Style Harness with D-ring was designed for working conditions with electrical hazards, making this a great option for substation and other utility work.
Buck’s Blackout series of BuckOhm™ harnesses has black nylon webbing with a touch of hi-vis safety green. The dorsal D-ring option allows for easier connection and disconnection from your lanyard and allows you to store the lanyard in the bucket.
Harness Features:
- 9KV rated Dielectric hardware.
- Dielectric quick-connect chest buckle and leg straps for easier donning.

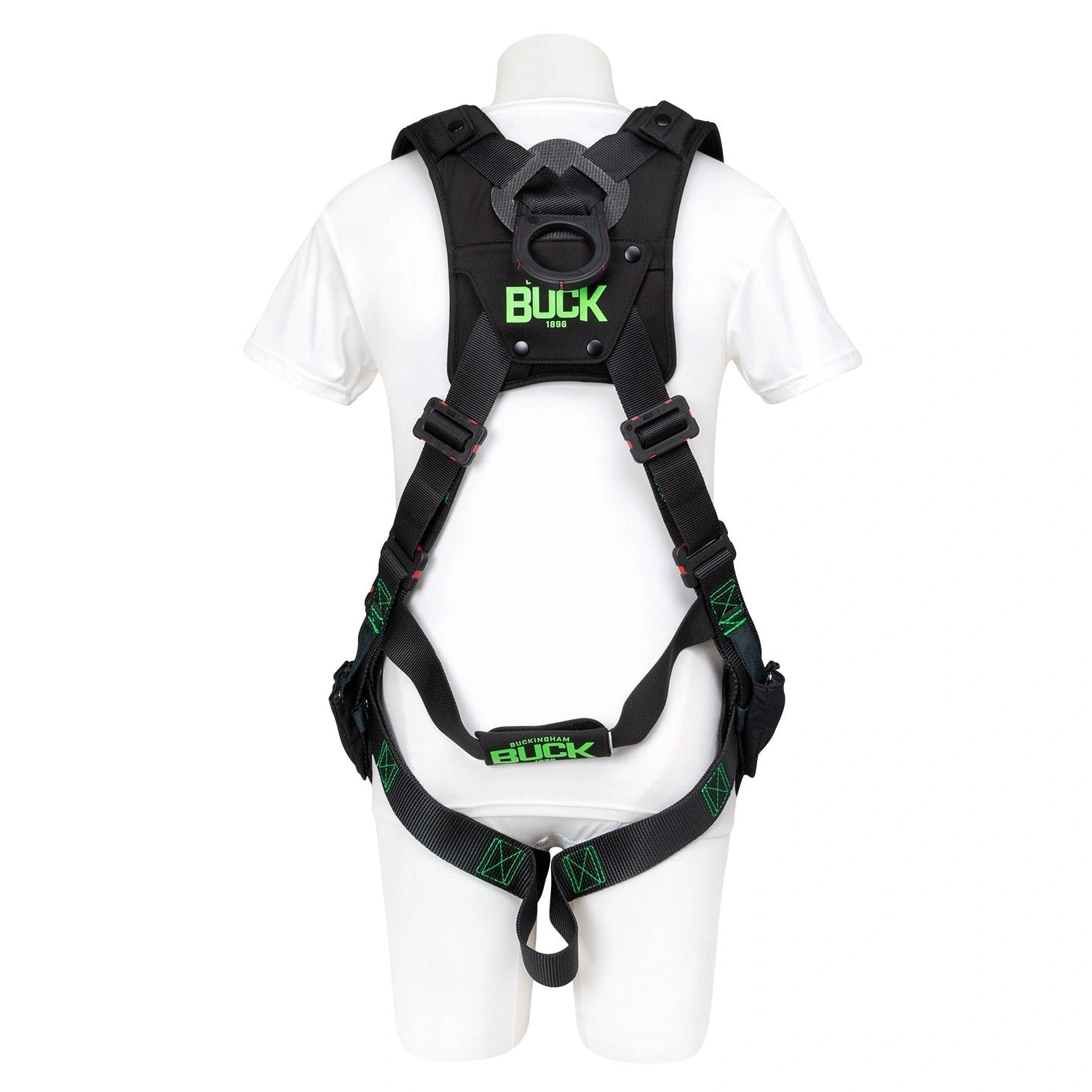

- Dorsal Dielectric D-ring.
- Sternal Dielectric D-ring.
- Arc tested shoulder pads.
- Dielectric friction buckles on vertical shoulder straps for height adjustments.
- The harness features permanently attached BuckStep™ 2.0 instead of the traditional girth hitching attachment method.
Product Specifications:
| Product Number: | U68M9EQ3 |
| Product Name: | BuckOhm™ TrueFit™ H-Style with Dielectric D-Ring |
| Material: | Nylon |
| Chest Strap: | Dielectric Quick Connect Buckle |
| Leg Strap: | Dielectric Quick Connect Buckle |
| Thread Stitching: | Nylon |
| Torso Adjustment: | Yes |
| Dorsal Adjustment: | Dielectric D-Ring |
| Shoulder/Leg Pads: | Yes |
| Shoulder/Leg Pad Type: | FR |
| Harness Type: | H |
| Frontal Attachments: | Yes - Sternal D-Ring |
| Retrieval Attachments: | No |
| Trauma Straps: | Yes - BuckStep™ 2.0 |
| Size: | Universal |
| Positioning D-rings: | No |
| Body Belt Attachment: | No |
| Product Type: | Fall Arrest / Fall Restraint |
| User Weight Capacity: | Rated to 420 lbs. when used with equivalently rated accessories. |
| Weight: | 4.5 lbs. |
| Standards: | ASTM F887, ANSI Z359, OSHA 1926.954(b)(1)(ii) |
| Made in the USA?: | Yes |
