Ürün Detayı

Slingco Parlak Çinko Kaplamalı Hat Dönerleri: Güvenilir Bağlantılar, Parlayan Performans!

Bu eşsiz tasarım, ruhunuza dokunacak bir sanat eseri gibi. Her detayı özenle işlenmiş, ışığıyla dans eden bir şaheser. Sizi sıradanlıktan kurtaracak, hayata renk katacak bir tutku! İçinizdeki maceraperesti uyandıracak, stilinizi bir üst seviyeye taşıyacak. Sınırlı sayıda üretildi, kaçırmayın!

₺6384.83 ₺12769.27

Safe Working Load:

2250 lbs

3500 lbs

5000 lbs

7000 lbs

10000 lbs

15000 lbs

Material:

Bright Zinc Plated

adet:

açıklama

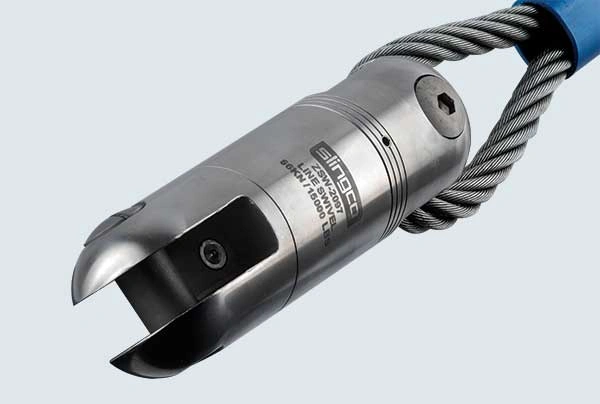

Swivels designed for use in stringing high tension wires for electrical transmission and distribution. Swivels are important in pulling when the lines develop torsion during the installation. This torsion must be released. The use of a swivel will release torque and prevent it from reaching dangerous levels, which can cause damage to the cable or grip.

*Usually ships in 7 to 14 days.

Slingco also offers a ‘bull nose’ style swivel designed for underground and overhead applications.

All swivels are stringently quality tested and inspected to ensure optimum performance and reliability.

Features and benefits

Releases torsion
Prevents damage to cable or grip
Suitable for underground or overhead applications
Straight-line pulling only

Safe Working Load - Underground (lb)	Safe Working Load - Overhead (lb)	A (in)	Ø B (in)	C (in)	D (in)	Ø E (in)	Slingco Part No.
2,250	1,350	3.375	0.875	0.375	0.875	0.313	ZSW2091
3,500	2,100	4	1	0.438	0.688	0.375	ZSW2092
5,000	3,000	4.938	1.25	0.562	1.25	0.375	ZSW2093
7,000	4,200	5.188	1.375	0.562	1.406	0.5	ZSW2094
10,000	6,000	6.188	1.625	0.703	1.75	0.65	ZSW2096
15,000	9,000	7.313	2.094	0.781	2.125	0.719	ZSW2097

Note:
3:1 factor of safety used, based on the ultimate load for underground use
5:1 factor of safety used, based on the ultimate load for overhead use

A note about dimensions and tolerances
